Regulator Parts & Vintage SCUBA Equipment

New Manufacture, with Modern Material Benefits

Here you will find our growing line of modern and vintage SCUBA regulator parts as well as other specialized equipment.



Vintage Flat Backplate

Our flat Vintage Plate will allow you to use a modern air cell with open tank band slots  AND any single piece 2" webbing*.  Equipped with waist slots** for BOTH tall and short divers allowing for comfort and critical placement of the regulator can between the diver's shoulder blades.   The bottom corners are slightly bent to stop digging at your side.

This plate can also be used for modern single hose diving.

Offered in 1/8" thick 5150 aluminum and weighing 1 lb 4 oz.



*we recommend a harness that is mild in stiffness to allow for ease of threading through the shoulder slots due to proximity of the regulator can to the top of the plate.  Shoulder slots are designed such that the harness must be crossed for stability (left side shoulder slot for your right shoulder and right side shoulder slot for your left shoulder harness).

**we also recommend belt slides for the harness on the backside of the waist slots on the plate to secure the harness from movement and wear to the webbing.  We do not offer harnesses and harness accessories at this time.







Vintage SCUBA Double Hose Regulator Back Plate

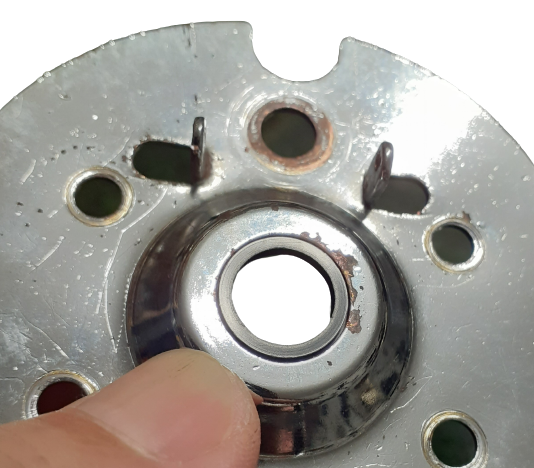

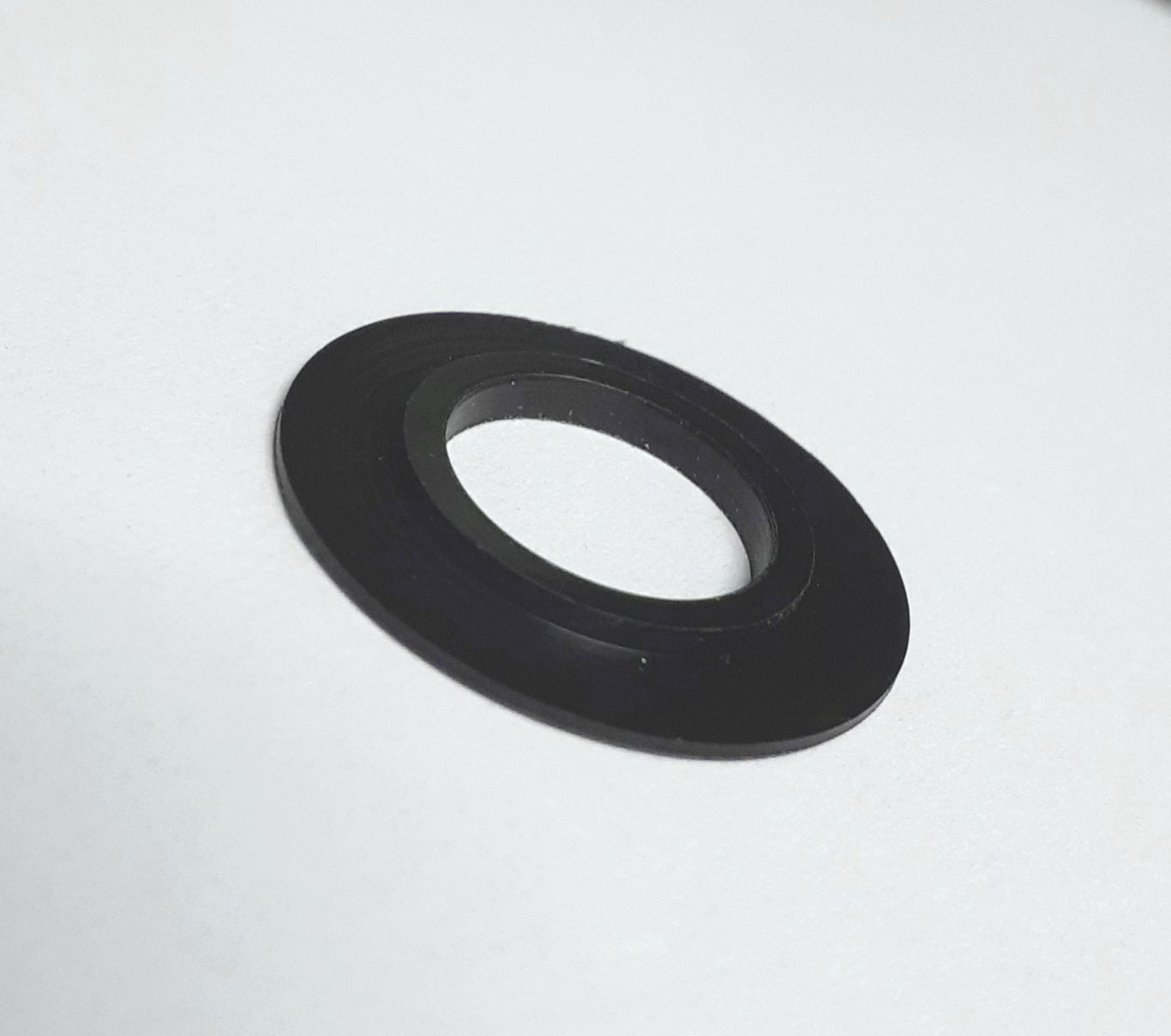

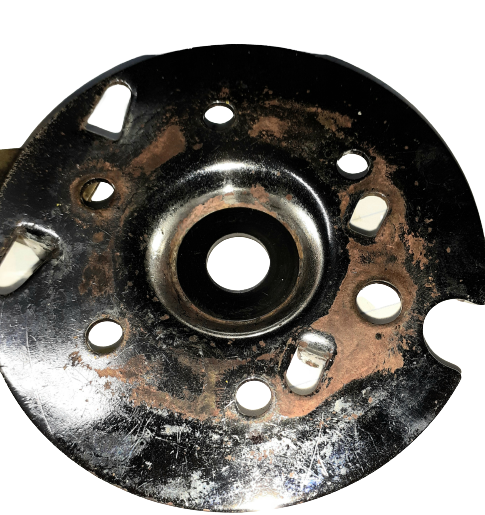

Dacor High Pressure (HP) Diaphragms

Precision cut from modern .125" EPDM, three layer rubber.

All parts in this section are intended to be installed and serviced by qualified SCUBA regulator technicians.

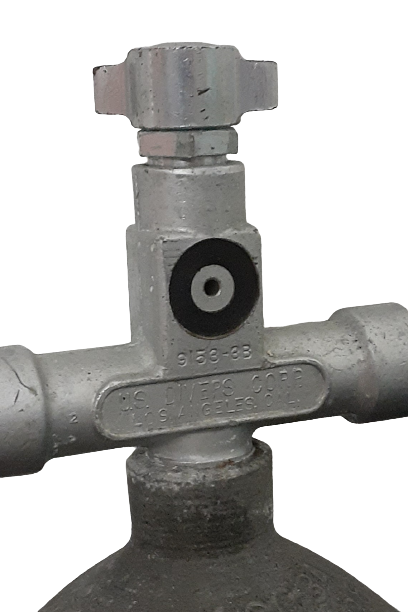

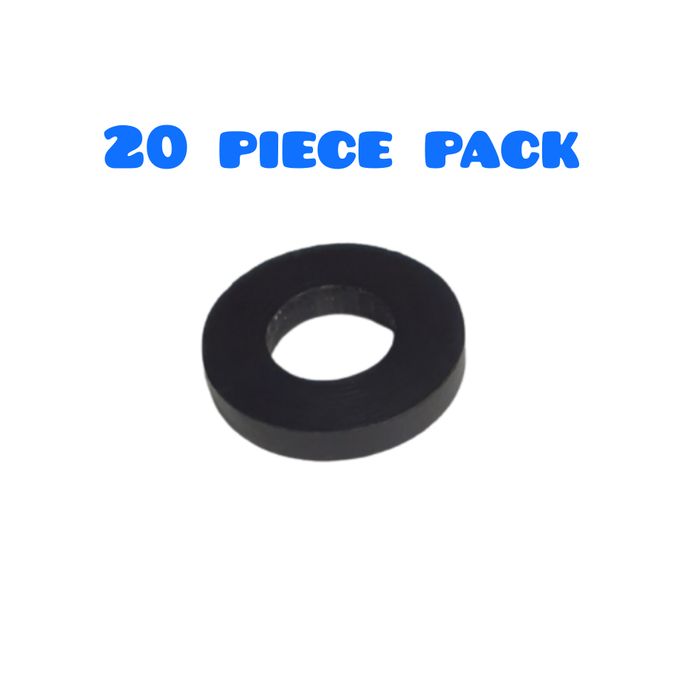

O-Rings For Vintage Valves

These are our in-house punched o-rings for early '50's valves.

Stop fussing looking or making something that may work...buy ours and dive!






Shims

We are now offering service parts for the DACOR Double Hose regulators as well as hard to find shims for Sherwood and Scubapro regulators.  Custom orders welcome if you do not see what you need.  Use this form to receive a quote.

Dacor Double Hose Main Spring Shim

Get your Dacor Double Hose regulator breathing better with our shim.  IP will increase 10-15psi.  Made from tough acetal plastic.

First Stage Piston Shims

For Scubapro and Sherwood Piston Regulators

Each kit comes with three shims; 1 pc .015" 1 pc .030", 1pc .045"

We do not recommend stacking shims!  Please note that our shims are made to fit the piston itself with little to no excess space aka 'no slop'.  They may OR may not fit the body of the regulator.  If you wish to order shims made to different dimensions, please use our shim quote form.

Custom shims quickly made to order if you don't see what you need.

Use this form to receive a quote.  Prices are better for larger quantities.

All parts in this section are intended to be installed and serviced by qualified SCUBA regulator technicians.
